How to assemble your floor

These steps are for the full package, you might not need all of them.

Installation Tutorials

Watch our videos below for guidance on installing your Versoflor Garage Flooring.

Preparing Your Floor

Guidance on preparing your floor prior to laying.

Fitting Your Floor

How to lay your floor for best results.

Cutting your Floor

Guidance on cutting your floor when required.

Self Install, Made Easy

Follow these simple steps to install your garage floor tiles

Step 1

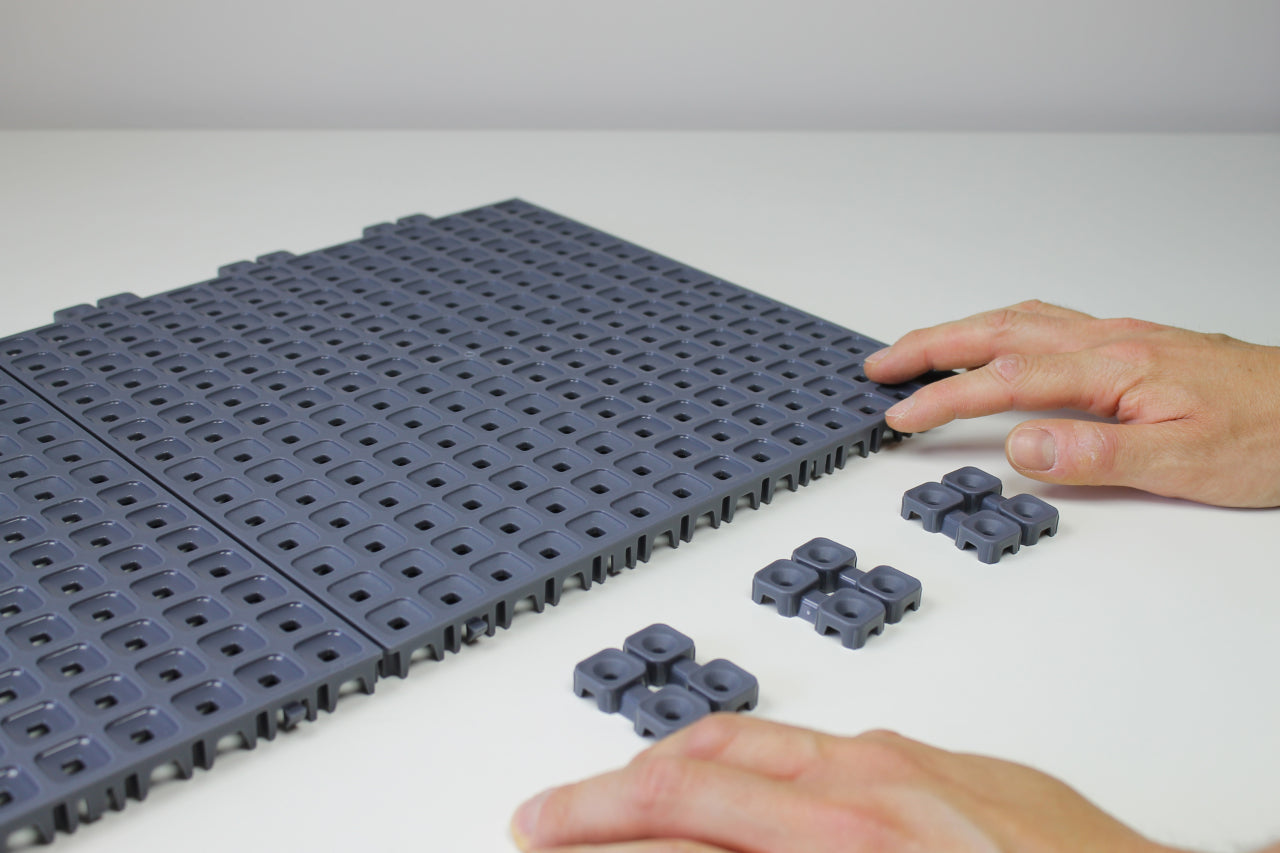

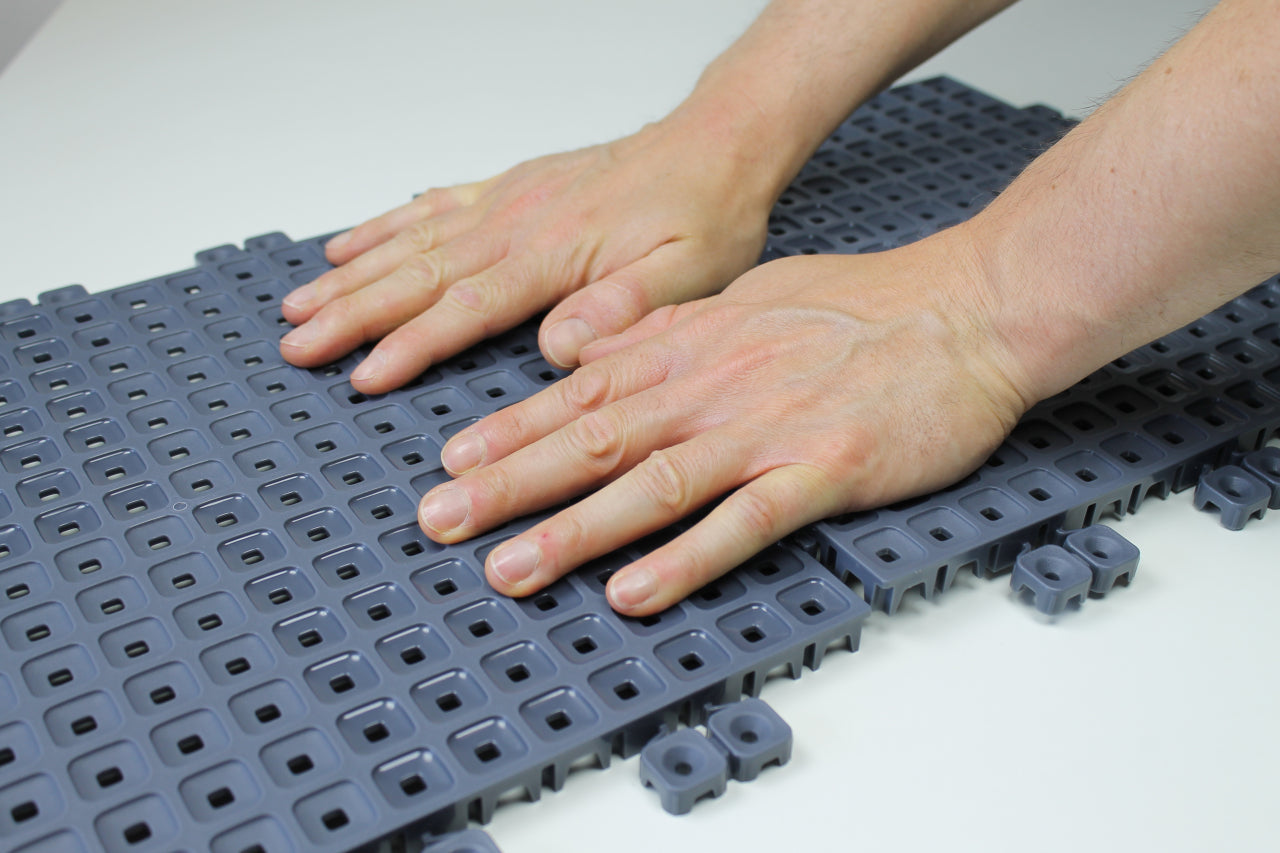

Tile assembly: simply align one tile over the connectors and another tile. Push down to snap securely together.

NOTE: There will be a 2.4mm expansion gap between the tiles once assembled.

Step 2

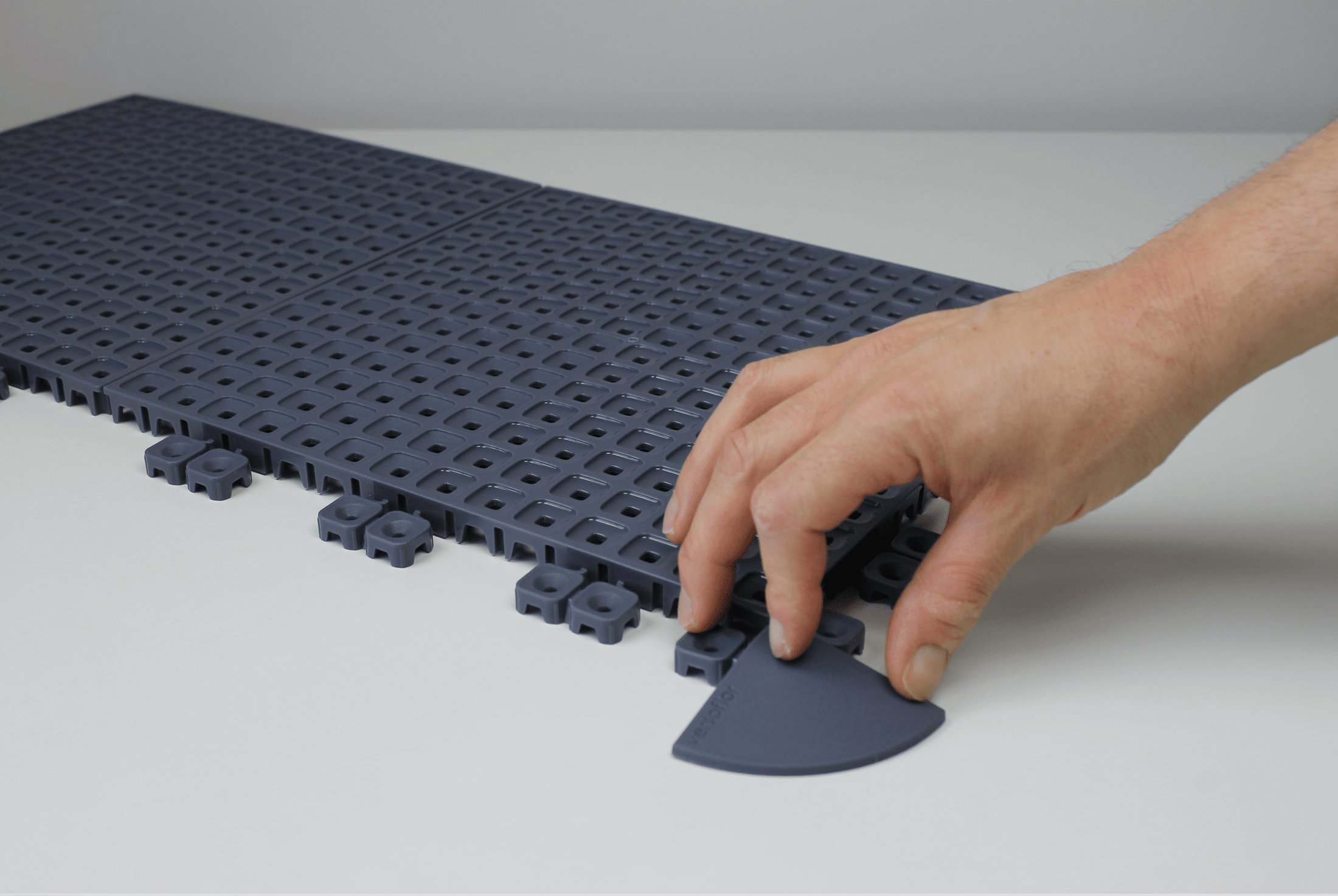

Edge trim assembly: put corner trim in position, then push edge trim into available connectors and snap securely together.

Step 3

Adding connectors: where there are no edge connectors on the tile, simply use a 'tile' connector'. Simply lift and push it beneath.

Step 4

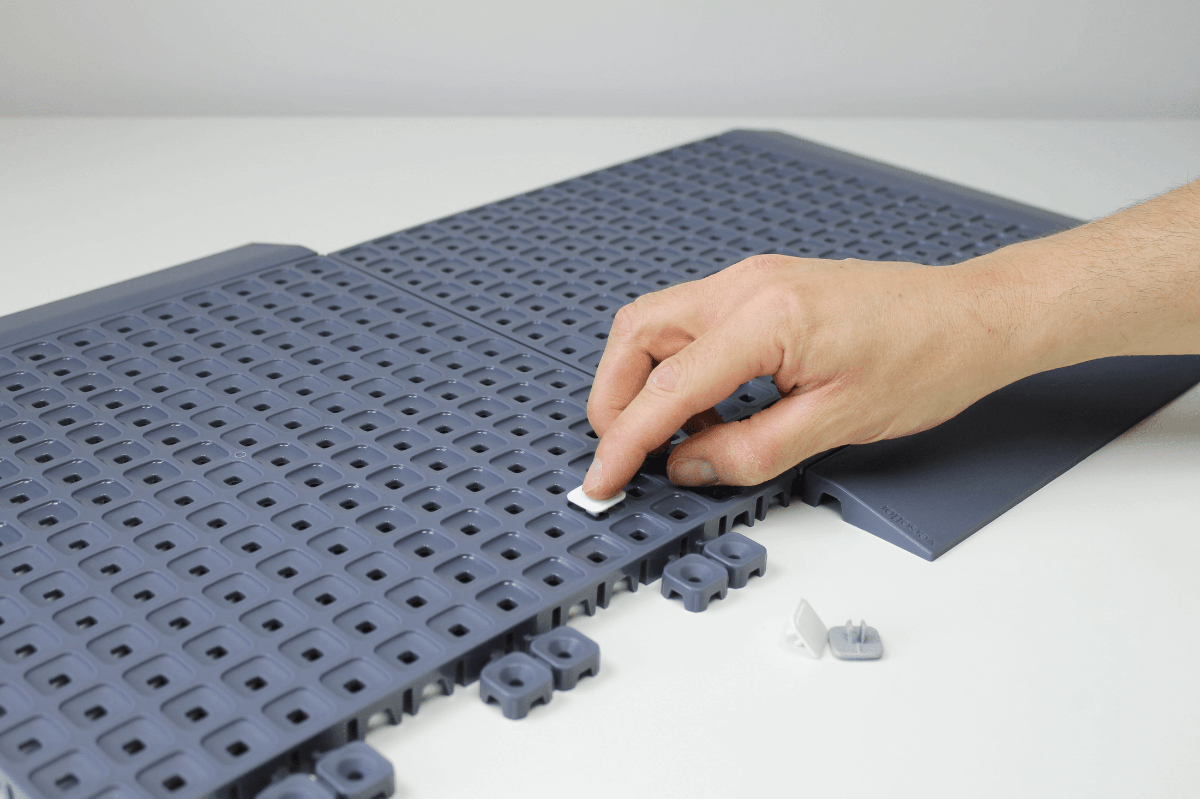

Mosaic Insertion: choose any of the square holes and push mosaic in securely. To remove mosaics, overturn the tile and use pliers.

Top Tip: design the pattern with overturned tiles and then push them into place once happy wth the design.

Step 5

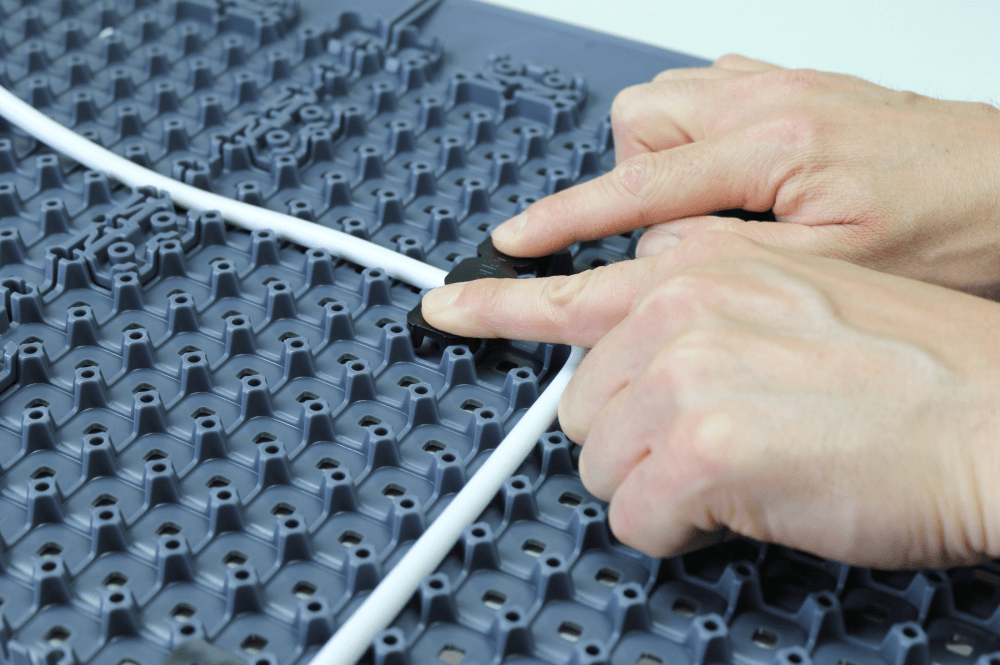

Cable clip: for cable management and use with LED strips, simply push into place as shown above.

Step 6

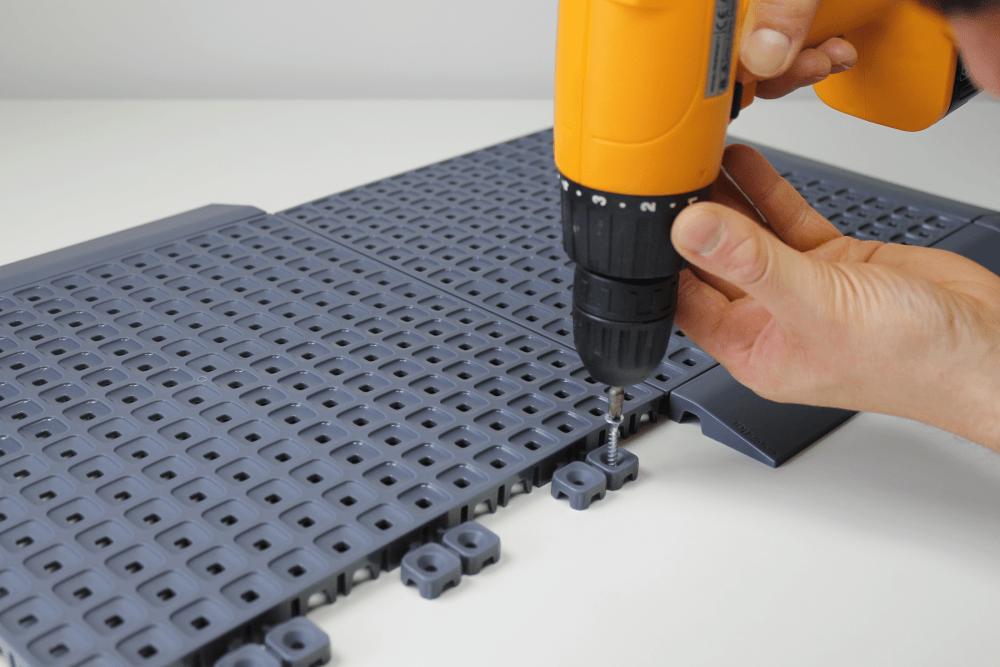

Tile fixing: this it NOT ESSENTIAL, but if you want to secure the floor to ground, use a No 6-8 wood screw. This is concealed by the adjacent tile or edge trim.

Top Tip: Fixing is ideal for the front edge of a garage space to prevent the tiles from moving as a vehicle drives onto the flooring

Step by Step Installation Guide

Download our handy step by step guide to help you through the floor laying process
(Click to open, or right click to save as)

Download
